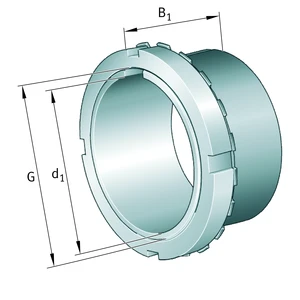

FAG H39/530-Sarung Penyesuai HG Tersedia
Oveview
H..-HG lengan penyesuai saiz besar; Diameter lubang: 530 mm; Diameter luar: 630 mm; Nat lebar dan kunci: 88 mm Jisim: 91.3 kg; , Terutamanya digunakan dengan galas rolling, lengkap, hidraulik, FP; Boleh ditukar ganti dengan jenama lain H39/530HG.
spesifikasi

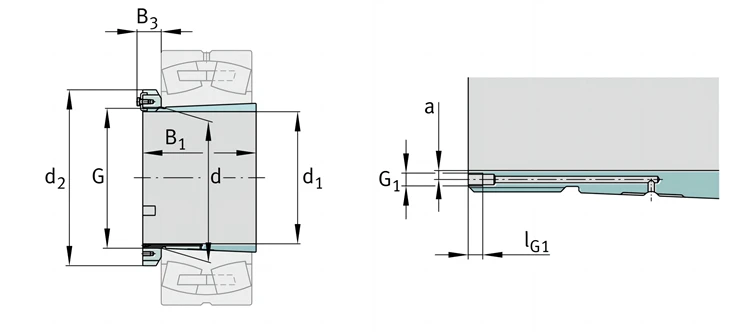

| Dimensi & Data Teknikal | |
| Bahagian NO. | H39/530-Lengan Penyesuai HG |
| Jenama | FAG dibuat di JERMAN |
| Dimensi Utama | 530×630×88 mm |
| d1 | 500mm |
| G | Tr530X6 |
| B1 | 216mm |
| m | 91.6kg |
| G1 | M8 |
| a | 6 mm |
| IG1 | 12 mm |
| d | 530 mm |
| d2 | 630 mm |
| B3 | 88 mm |
| HM30/530 | Locknut |
| Fius | MS30/530 |
| Tirus | 1:12 |
Lengan Penyesuai FAG yang dilanjutkan dalam stok
| Desinasi | B(mm) |
| H3060-HGX1100 | 168 |
| H3072-HG | 188 |
| H3072-HGX1307 | 188 |
| H3080-HGJ | - |
| H3092-HG | 234 |
| H3096-HG | 237 |
| H31/560-HG | 377 |
| H31/800-HG | 505 |
| H31/850-HG | 536 |
| H3132-HG | 119 |
| H3134-HGX515 | 122 |
| H3140-HGJ | - |
| H3184-HGX1512 | 304 |
| H3192-HGX1700 | 326 |
| H32/560-HG | 462 |
| H32/600-HG | 487 |
| H32/670-HG | 558 |
| H3936-HG | 87 |
| H3948-HG | 101 |
| H3952-HG | 116 |
| H3956-HG | 121 |
| H3960-HG | 140 |
| H3968-HG | 144 |
| H3972-HG | 144 |
| H3976-HG | 164 |
| H3980-HG | 168 |
| H2332-HGJ | - |
| H2334-HGJ | - |
| H2334-HGX513 | 154 |
| H2334-HGX514 | 154 |
| H2334-HGX515 | 154 |
| H2334-HGX600 | 154 |
| H2336-HGX607 | 161 |
| H2336-HGX608 | 161 |
| H2338-HGJ | - |
| H2338-HGX612 | 169 |
| H2338-HGX613 | 169 |
| H2338-HGX614 | 169 |
| H2338-HGX615 | 169 |
| H2338-HGX700 | 169 |
| H2340-HGJ | - |
| H2340-HGX700 | 176 |
| H2340-HGX702 | 176 |
| H2340-HGX703 | 176 |
| H2340-HGX704 | 176 |
| H2344X-HGJ | - |
| H2344X-HGX715 | 186 |
| H2348X-HGX815 | 199 |
| H2352X-HGJ | - |
| H2352X-HGX907 | 211 |
| H2356X-HGJ | - |
| H2356X-HGX1007 | 224 |
| H2356X-HGX1008 | 224 |
| H240/1060-HG | 588 |
| H240/1120-HG | 612 |
| H240/1180-HG | 625 |
| H240/1250-HG | 660 |
| H240/1320-HG | 690 |
| H240/1400-HG | 705 |
| H240/1500-HG | 775 |
| H240/500-HG | 309 |
| H240/530-HG | 343 |
| H240/560-HG | 358 |
| H240/750-HG | 460 |
| H240/850-HG | 495 |
| H24032-HG | 118 |
| H24034-HG | 130 |
| H24036-HG | 140 |
| H24038-HG | 143 |
| H24040-HG | 153 |
| H24048-HG | 167 |
| H24052-HG | 190 |
| H24060-HG | 220 |
| H24064-HG | 220 |
| H24068-HG | 244 |
| H24072-HG | 244 |
| H24076-HG | 248 |
| H24080-HG | 272 |
| H24084-HG | 274 |
| H24088-HG | 294 |
| H24092-HG | 300 |
| H241/1060-HG | 775 |
| H241/1120-HG | 805 |
| H241/1180-HG | 845 |
| H241/1320-HG | 935 |
| H241/1400-HG | 965 |
| H241/1500-HG | 990 |
| H241/710-HG | 577 |
| H241/850-HG | 658 |
| H241/900-HG | 685 |
| H24132-HG | 148 |
| H24134-HG | 149 |
| H24136-HG | 159 |
| H24138-HG | 172 |
| H24140-HG | 185 |
| H24152-HG | 235 |
| H24164-HG | 278 |
| H24176-HG | 323 |
| H24180-HG | 332 |
| H24188-HG | 372 |
